Turbocharger Parts Automatic Measuring Machine

1.Product Introduction

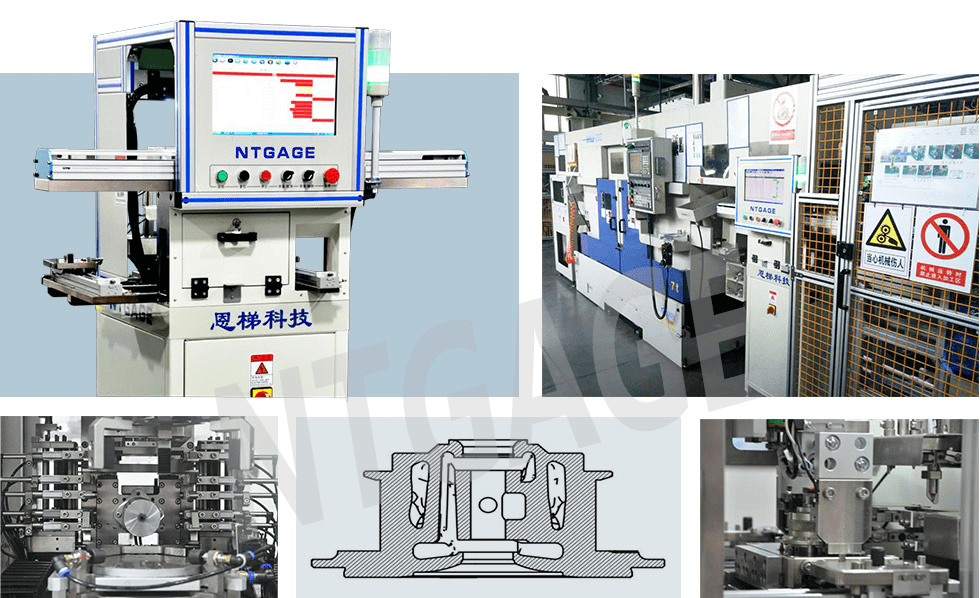

Automatic measuring machine for turbocharger parts
The manipulator automatically clamps the workpiece to the detection station, and automatically detects the aperture, outer diameter, height and double-section aperture of the workpiece. The device supports docking with machine tools.

2.Test items

1. Upper and lower apertures
2. Honing aperture (double section)
3. Two outer diameters, two heights

1. Resolution 0.1μm
2. Accuracy according to MSA standard GRR≤10%
3. With feeding error prevention mechanism
4. Docking with the production line, data into the MES system
5. Forced automatic calibration function
6. SPC statistical analysis
7. The signal of intelligent tool compensation is fed back to the machining center
