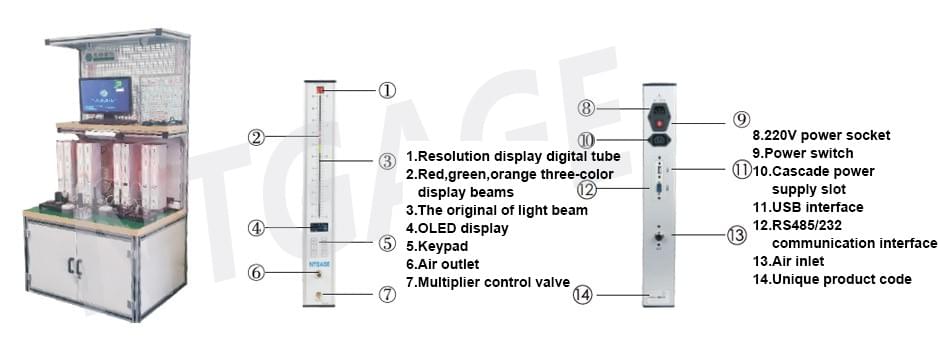

1.Product Introduction
This is a precision measuring instrument that continuously detects the dimensions of various mechanical workpieces.
2.Product specification
1. Accuracy: The measurement accuracy is accurate to 0.1um
2. Convenience: The three-color light column and the digital display screen are displayed at the same time, quickly judging whether it is qualified or not
3. Storage: can store 3000 sets of data, and support U disk export
4. Communication: RS-485S output is standard, and a wireless data transceiver module can be configured inside to communicate with the SPC workstation remotely, and other I/O outputs can also be customized
3.Performance
1.Number of LED displays 101
2.LED display color red, orange, green three-color display
3.LED display height 254mm
4.Unit of measurement mm, micron
5.Measurement type inner diameter, outer diameter, height, runout, maximum value, minimum value, etc.
6.Air source Dry and clean, 0.4Mpa-0.8Mpa
7.Basic error
Indication range (um) Resolution (um) Total error (um)≤
±5 0.1 0.2
±10 0.2 0.4
±25 0.5 1.0
±50 1 2.0
