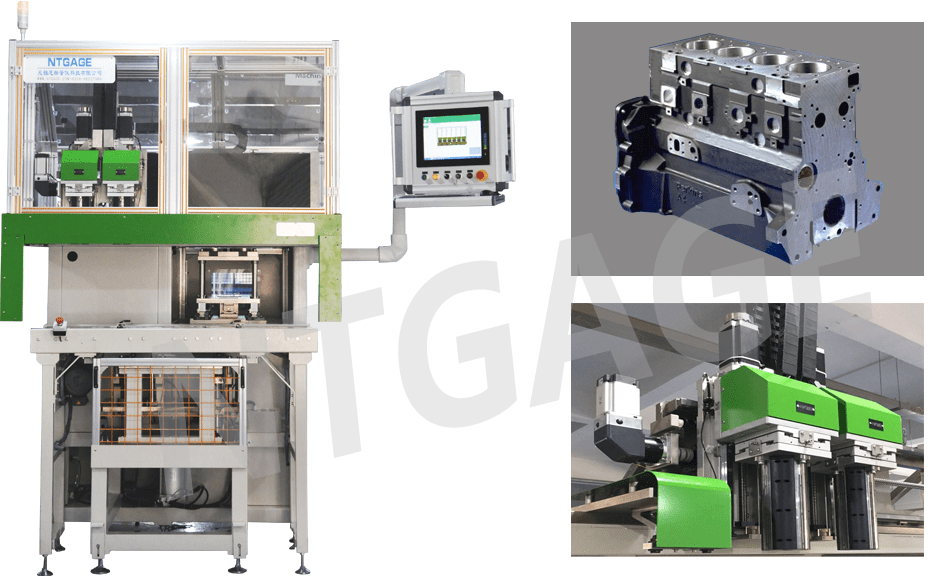

1.Product Introduction
The workpiece is directly transported from the production line to the inspection machine, and the jacking and positioning mechanism is arranged under the tunnel, and the cylinder hole probe is servo-controlled, and each cylinder hole is automatically inspected in turn (one measurement of three sections and two directions)
2.Test items
- Bore diameter
- Roundness of cylinder bore
- Cylinder bore cylindricity
3.Features
- Resolution 0.1μM
- The use of photoelectric switches can realize the switching of different products
- Detection beat <2min
- Connect with the production line to realize the sorting of qualified and unqualified
